clear close clc
t0 = clock;
load sj.txt
x=sj(:,1:2:8); x=x(:);
y=sj(:,2:2:8); y=y(:);
sj=[x y]; d1=[70,40];
sj0=[d1;sj;d1]; sj=sj0*pi/180;
d=zeros(102);
for i=1:101
for j=i+1:102
temp=cos(sj(i,1)-sj(j,1))*cos(sj(i,2))*cos(sj(j,2))+sin(sj(i,2))*sin(sj(j,2));
d(i,j)=6370*acos(temp);
end
end
d=d+d';
n = size(sj0,1);
D = d;
m = 120;
alpha = 1;
beta = 5;
vol = 0.2;
Q = 10;
Heu_F = 1./D;
Tau = ones(n,n);
Table = zeros(m,n);
iter = 1;
iter_max = 50;
Route_best = zeros(iter_max,n);
Length_best = zeros(iter_max,1);
Length_ave = zeros(iter_max,1);
Limit_iter = 0;
while iter <= iter_max
start = zeros(m,1);
for i = 1:m
temp = randperm(n);
start(i) = temp(1);
end
Table(:,1) = start;
citys_index = 1:n;
for i = 1:m
for j = 2:n
tabu = Table(i,1:(j - 1));
allow_index = ~ismember(citys_index,tabu);
allow = citys_index(allow_index);
P = allow;
for k = 1:length(allow)
P(k) = Tau(tabu(end),allow(k))^alpha * Heu_F(tabu(end),allow(k))^beta;
end
P = P/sum(P);
Pc = cumsum(P);
target_index = find(Pc >= rand);
target = allow(target_index(1));
Table(i,j) = target;
end
end
Length = zeros(m,1);
for i = 1:m
Route = Table(i,:);
for j = 1:(n - 1)
Length(i) = Length(i) + D(Route(j),Route(j + 1));
end
Length(i) = Length(i) + D(Route(n),Route(1));
end
if iter == 1
[min_Length,min_index] = min(Length);
Length_best(iter) = min_Length;
Length_ave(iter) = mean(Length);
Route_best(iter,:) = Table(min_index,:);
Limit_iter = 1;
else
[min_Length,min_index] = min(Length);
Length_best(iter) = min(Length_best(iter - 1),min_Length);
Length_ave(iter) = mean(Length);
if Length_best(iter) == min_Length
Route_best(iter,:) = Table(min_index,:);
Limit_iter = iter;
else
Route_best(iter,:) = Route_best((iter-1),:);
end
end
Delta_Tau = zeros(n,n);
for i = 1:m
for j = 1:(n - 1)
Delta_Tau(Table(i,j),Table(i,j+1)) = Delta_Tau(Table(i,j),Table(i,j+1)) + Q/Length(i);
end
Delta_Tau(Table(i,n),Table(i,1)) = Delta_Tau(Table(i,n),Table(i,1)) + Q/Length(i);
end
Tau = (1-vol) * Tau + Delta_Tau;
iter = iter + 1;
Table = zeros(m,n);
end
[Shortest_Length,index] = min(Length_best);
Shortest_Route = Route_best(index,:);
Time_Cost=etime(clock,t0);
disp(['最短距离:' num2str(Shortest_Length)]);
disp(['最短时间:' num2str(Shortest_Length/1000) '小时']);
disp(['收敛迭代次数:' num2str(Limit_iter)]);
disp(['程序执行时间:' num2str(Time_Cost) '秒']);

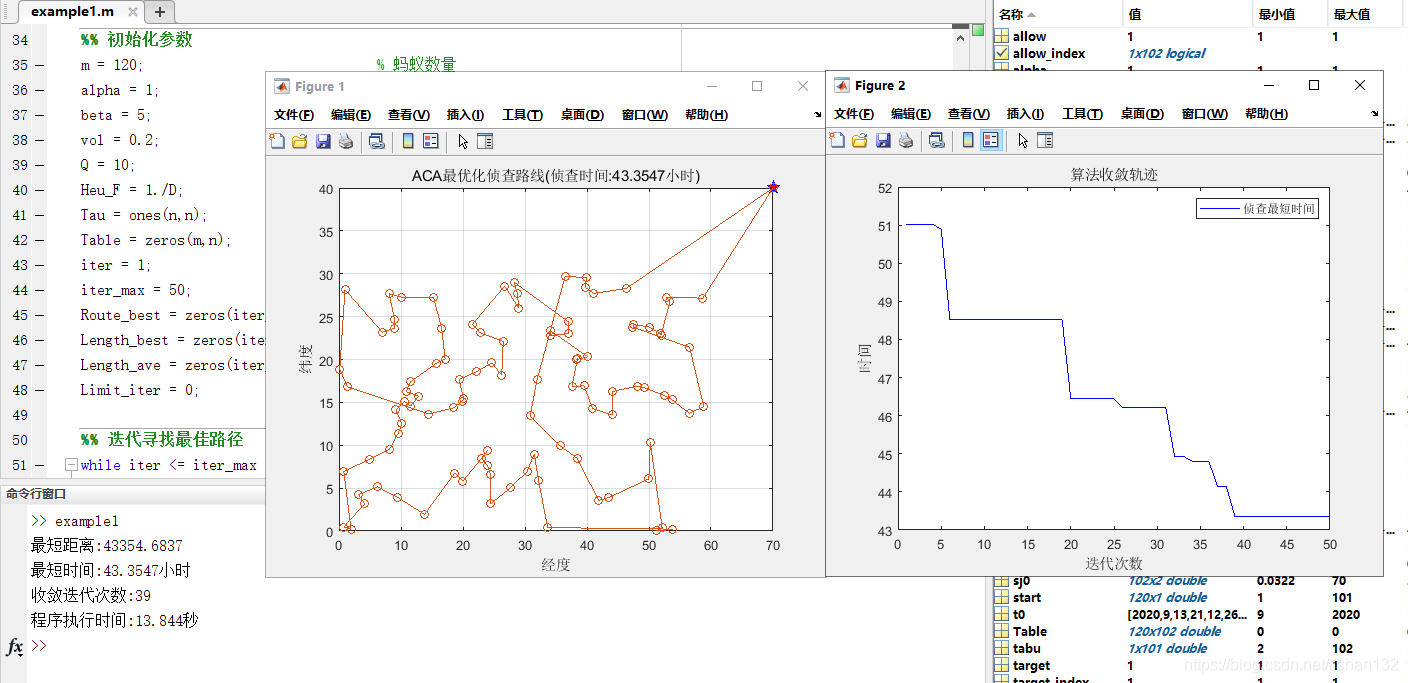

figure(1)
plot(x,y,'bO')
hold on
plot(70,40,'p',...
'MarkerSize',10,...
'MarkerEdgeColor','b',...
'MarkerFaceColor','r')
hold on
plot([sj0(Shortest_Route,1);sj0(Shortest_Route(1),1)],...
[sj0(Shortest_Route,2);sj0(Shortest_Route(1),2)],'o-');
grid on
hold off
xlabel('经度')
ylabel('纬度')
title(['ACA最优化侦查路线(侦查时间:' num2str(Shortest_Length/1000) '小时)'])
figure(2)
plot(1:iter_max,Length_best/1000,'b')
legend('侦查最短时间')
xlabel('迭代次数')
ylabel('时间')
title('算法收敛轨迹')
|
