本文最后更新于 2025年4月22日 下午
为了从视频中提取每一帧图片，编写Python脚本实现该功能，脚本中的关键参数根据实际情况进行修改
分割单视频文件
该脚本自动对帧图片编号，设置为7位编码，最多可分割9999999帧图片，即92小时的30FPS视频
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
|
import os.path
import time
import cv2
video_path = "./assets/intersection.mp4"
save_path = video_path[:video_path.rfind('.')]
os.makedirs(save_path, exist_ok=True)
cap = cv2.VideoCapture(video_path)
fps = int(cap.get(cv2.CAP_PROP_FPS))
print('FPS:{:.2f}'.format(fps)
rate = cap.get(5)
frame_num = cap.get(7)
duration = frame_num/rate
print('video total time:{:.2f}s'.format(duration))
interval = 1
process_num = frame_num // interval
print('process frame:{:.0f}'.format(process_num))
cnt = 0
num = 0
t0 = time.time()
while cap.isOpened():
ret, frame = cap.read()
if ret:
cnt += 1
if cnt % interval == 0:
num += 1
cv2.imwrite(save_path + "/%07d.jpg" % num, frame)
remain_frame = process_num - num
t1 = time.time() - t0
t0 = time.time()
print("Processing %07d.jpg, remain frame: %d, remain time: %.2fs" % (num, remain_frame, remain_frame * t1))
else:
break
if cv2.waitKey(1) & 0xff == 27:
break
cap.release()
cv2.destroyAllWindows()
print("done")
|

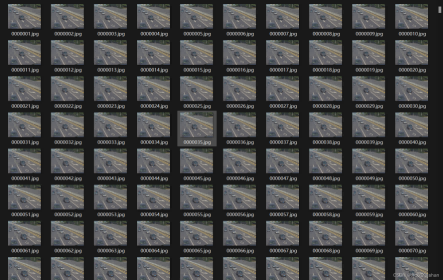

分割效果如下：
分割多视频文件
增加多对个视频文件提取制作数据集的功能

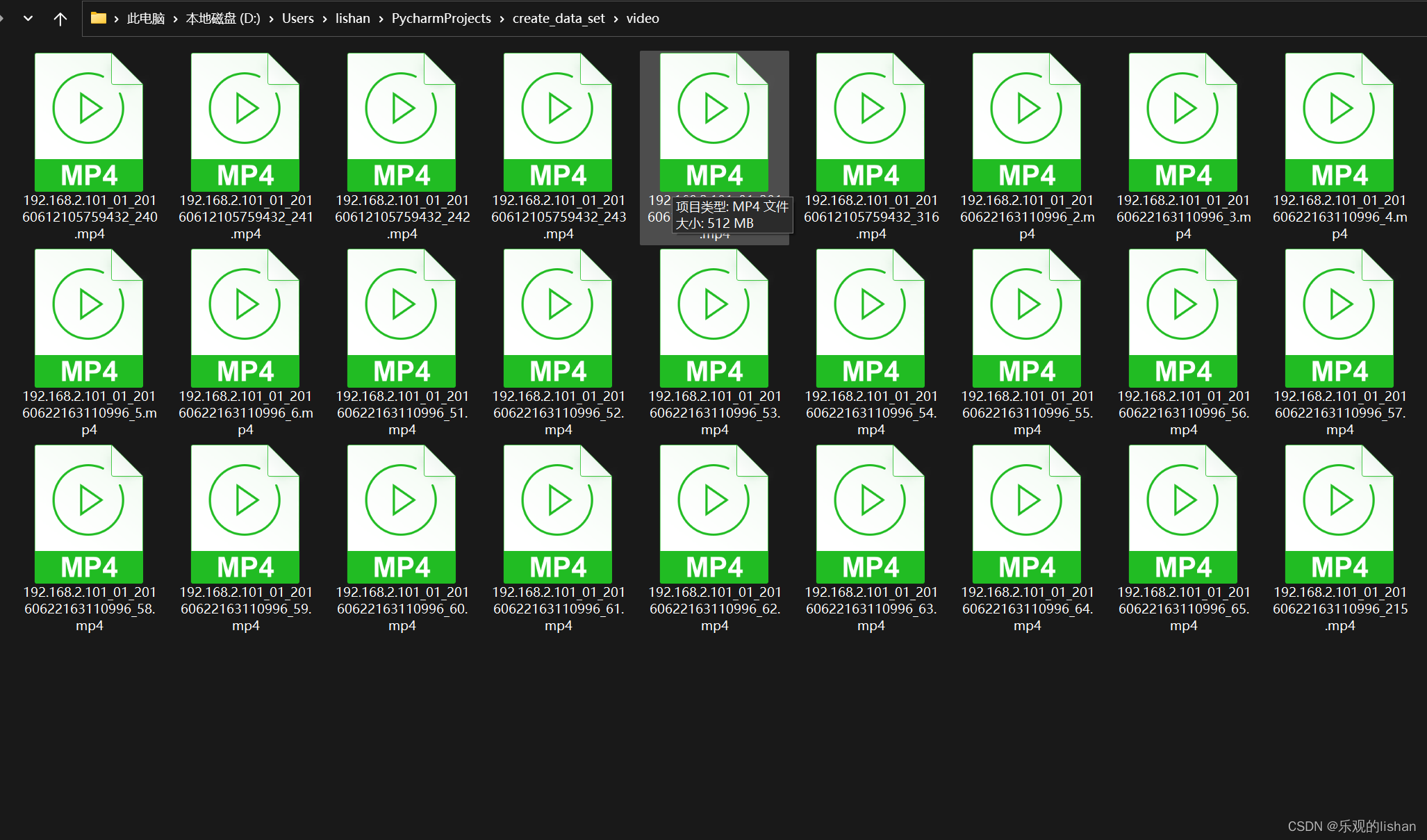

文件夹内的视频文件如下

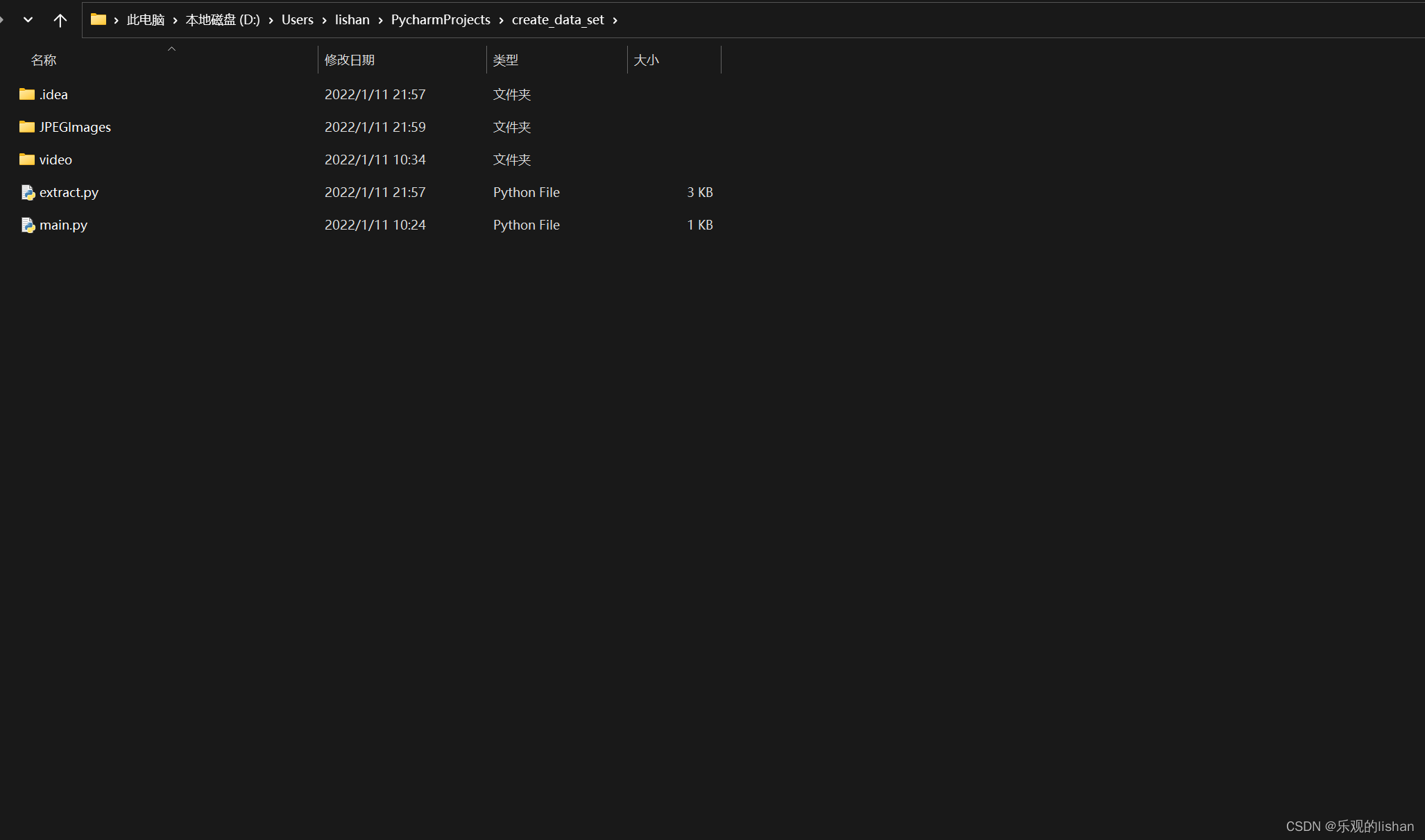

运行下列脚本文件，分割后的图片将保存到JPEGImage文件夹
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
|
import os.path
import time
import cv2
def get_video_list(path):
video_ext = [".mp4", ".avi"]
video_names = []
for maindir, subdir, file_name_list in os.walk(path):
for filename in file_name_list:
apath = os.path.join(maindir, filename)
ext = os.path.splitext(apath)[1]
if ext in video_ext:
video_names.append(apath)
return video_names
video_path = "./video/"
save_path = "./JPEGImages/"
print("frame image save path：{}".format(save_path))
os.makedirs(save_path, exist_ok=True)
num = 0
video_cnt = 0
if os.path.isdir(video_path):
files = get_video_list(video_path)
else:
files = [video_path]
files.sort()
video_num = len(files)
for i in range(video_num):
video_name = files[i]
print('video name: {}'.format(video_name))
print('progress: {:.0f}/{:.0f}'.format(i + 1, video_num))
cap = cv2.VideoCapture(video_name)
fps = int(cap.get(cv2.CAP_PROP_FPS))
print('FPS: {:.2f}'.format(fps))
rate = cap.get(5)
frame_num = cap.get(7)
duration = frame_num/rate
print('video total time: {:.2f}s'.format(duration))
interval = int(fps) * 4
process_num = frame_num // interval
print('process frame: {:.0f}'.format(process_num))
cnt = 0
current_num = 0
t0 = time.time()
while cap.isOpened():
ret, frame = cap.read()
if ret:
cnt += 1
if cnt % interval == 0:
num += 1
current_num += 1
cv2.imwrite(save_path + "/%07d.jpg" % num, frame)
remain_frame = process_num - current_num
t1 = time.time() - t0
t0 = time.time()
print("Processing %07d.jpg, remain frame: %d, remain time: %.2fs" %
(num, remain_frame, remain_frame * t1))
else:
break
cap.release()
print("done")
|

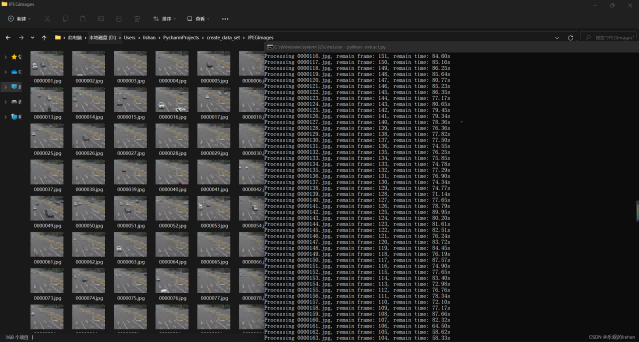

分割结果如下：
